Assemblable Hardmetal Clad Wear Plates
1. Description

AMT Assemblable Hardmetal Clad Wear Plates is made up of the hardmetal and bonded with steel base, which bonding strength is high enough. The wear resistance of the clad layer is good enough. And the steel base makes the clad plate very good strength as well.

2. Hardmetal Wearing Layer Performance



Types

Composition (%)

Density

/g·cm-3

Hardness

/HRA

Bend Strength

N/mm2

YG6

Co5.8-6.2 Balance WC

≥14.6

≥91

≥2150

YG8

Co7.8-8.2 Balance WC

≥14.5

≥90

≥2250

YG11

Co10.8-11.2 Balance WC

≥14.1

≥88

≥2300

YG15

Co14.8-15.2 Balance WC

≥13.9

≥85

≥2500

YG20

Co19.8-20.2 Balance WC

≥13.4

≥80

≥2650

Note: Other specifications can be available as per customer's requirements.

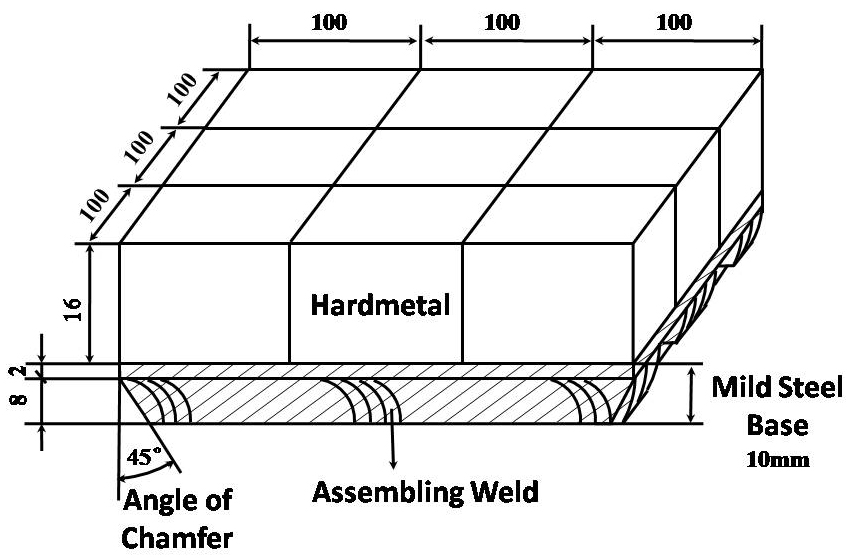

3. Dimensions

Typical Length*Width: 300 x 300 mm; Typical Base Thickness: 2mm (square) +8mm (chamfer) =10mm;Typical Clad Thickness: 16 mm. Base Metal: Mild Steel
